1.The STS (Standard Transfer Specification) is an Open Architecture initially introduced in South Africa in 1993, for the transfer of electricity prepayment tokens. Subsequently published by the IEC (International Electro technical Commission) as an International standard IEC62055-41,51. Now it also becomes popular for Water & Gas Meters with following advantages:
Compatibility
Inter-operability between system components from different
manufacturers of prepayment systems;
1.2 Easy Data (Water Volume/Credit) Transfer.
Water Credit/Volume transfer via 20 digits Token, no External Data transfer Media (Token-less);
1.3 Flexible Water Purchase (Prepaid Mode switchable to postpaid) that makes it much more convenient and easier.
1.3.1 Flexible Water Purchase Way at appointed agencies via POS or cash, Customer Self-service Mobile Phone via APP, USSD or by E-payment.
1.3.2 Customer self-service via Mobile phone, either through APP
or USSD, by E-payment

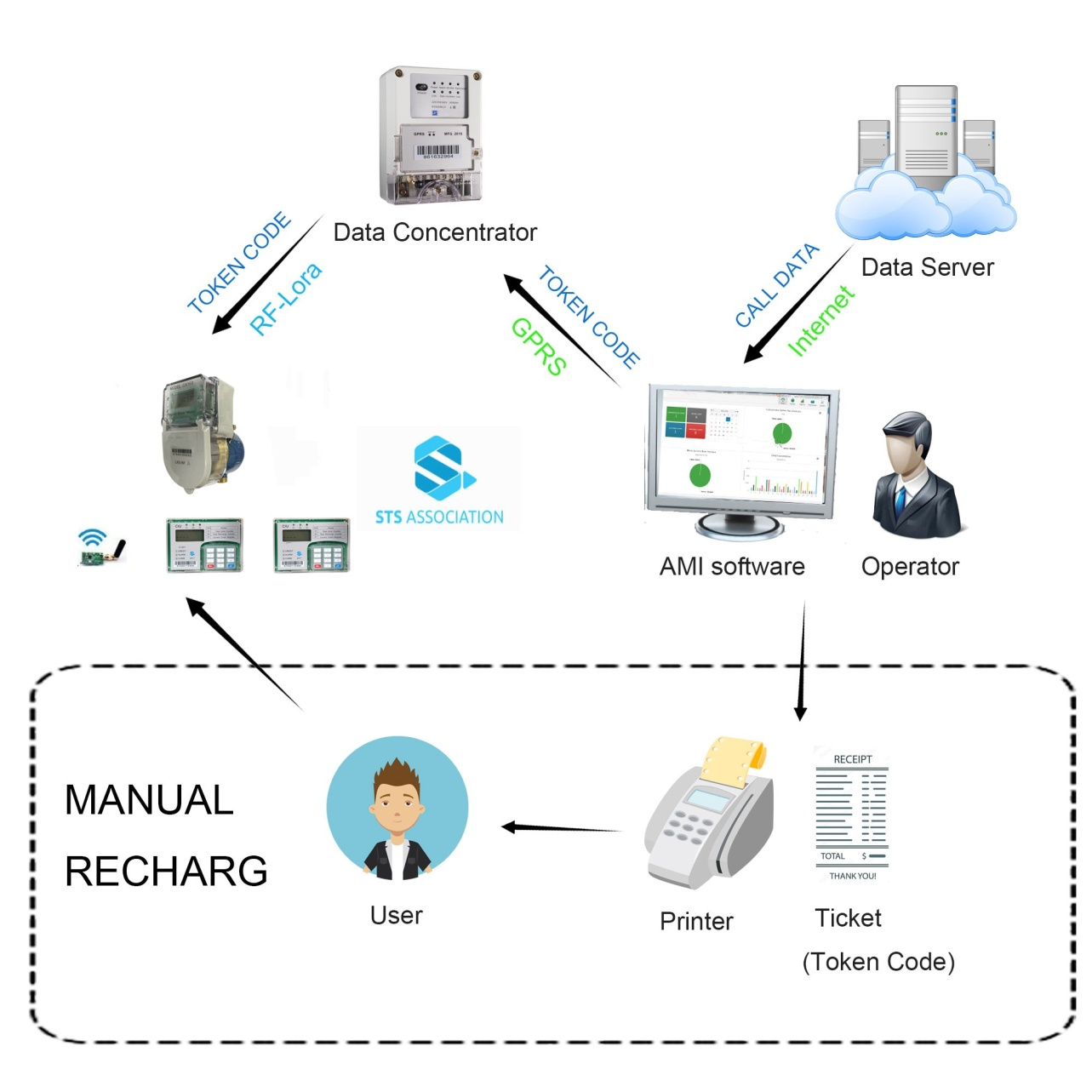

STS Prepaid/Postpaid Water Meter System consists of following components.

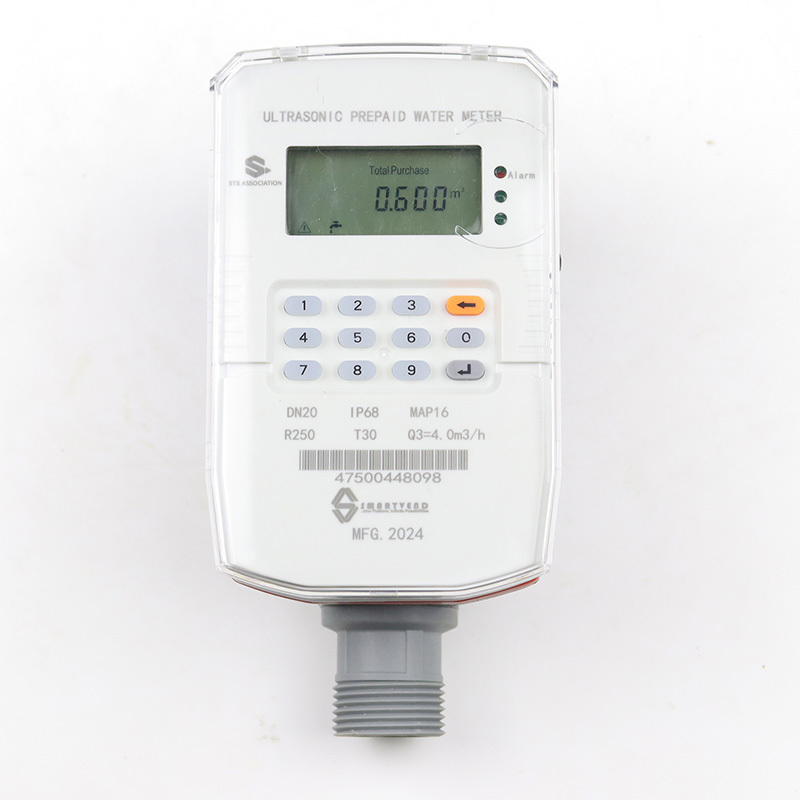

2.1 Smart Water Metering - Velocity / Volumetric / Ultrasonic .
2.2 Split Customer Interface Unit (CIU) for Meter Recharge & Data
Query- touchable LCD keypad with English language display.
2.3 Hardware & Digital Billing Management System (HDMS) for Water Vending, Monitoring, Data Management & Statistics

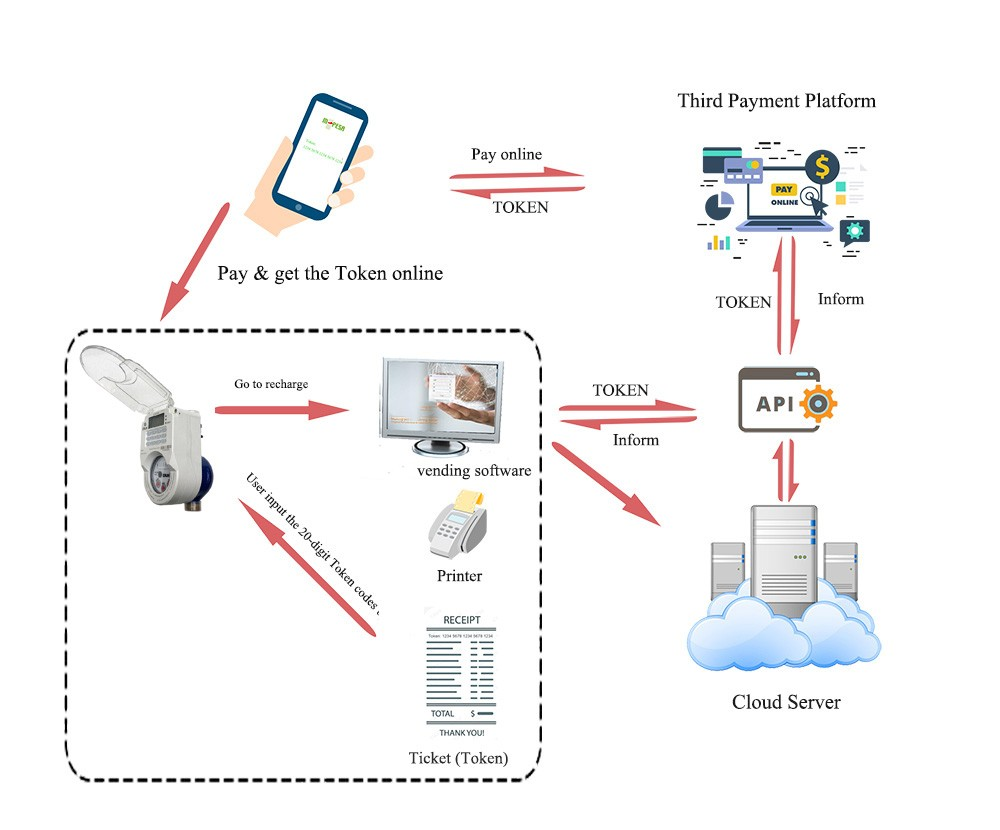

2.4 Mobile Water Vending Solution via POS or Mobile Phone with integration to local E-payment Platform and banks
System Components

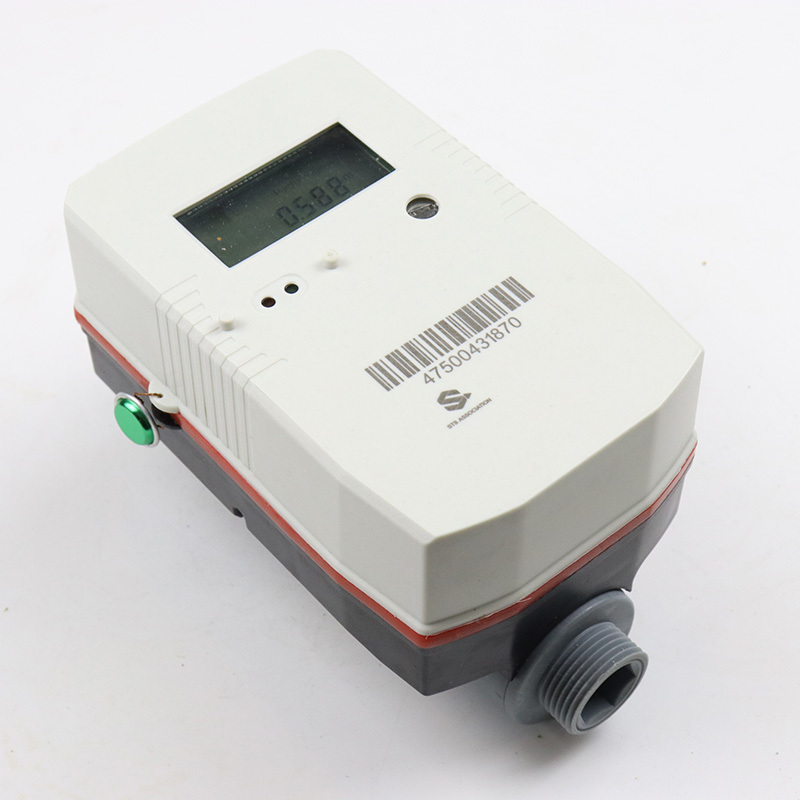

3.1 STS Smart water meter with LCD Display – LoRa or Lorawan Wireless
Comm Module integrated for meter recharge and data query. Comply with International STS Standard IEC62055-41,51
3.2 Customer Interface Unit (CIU) for Meter Recharge - Integrating LoRa or Lorawan Wireless Com. Module in both Meter and CIU Part, it supports Meter Recharge & Data Query via CIU through RF Wireless Comm. The communication distance is around 100-200m in residential area and should be programmable.
Specified Features
(1) Insufficient water warning
(2) Emergency Water (overdraft)
(3), Valve open and close automatically;
(4) Real-Time Clock
(5) Flexible tariff and debt collection setting
(6) Anti magnetic tamper
(7) Lora or Lorawan communication optional (CIU)
(8) Multi payment type, Token, Mobile, Pose, E-bank, etc;
(9) Magnetic field protection;
(10) Pre-programmable low credit warning;
Dimensions
| Caliber | Dn15 | Dn20 | Dn25 |
| Length L | 165 | 190 | 225 |
| Width (W) | 99 | 99 | 103 |
| Height (H) | 104 | 106 | 114 |
| Connecting Thread Pipe diameter d | R 1/2 | R 3/4 | R1 |
| Connecting Thread Case Diameter D | R 3/4 B | G 1 B | G 1 1/4 B |
Water Meter Parameters
| Caliber | DN15 | DN20 | DN25 |
| Range Ration | R100 ( R160/R200/R400 Optional) | ||
| Overload flow Q4 | 3.125 m³/h | 5 | 7.875 |
| Permanent flow Q3 | 2.5 | 4 | 6.3 |
| Transitional flow Q2 | 0.05 | 0.08 | 0.126 |
| Min flow Q1 | 0.025 | 0.04 | 0.063 |
| Waterproof Level | IP68 | ||
| Max Pressure | 1.6Mpa | ||
| Pressure Loss | 0.063Mpa | ||
| Temperature Class | T30 / T50 / T90 ( default T30) | ||
| Working Environment | -10℃-55℃， ≤100%RH | ||
| Battery | Lithium battery (Er2650, 8500mAh); 8 years life time; battery is exchangeable | ||
| Power Supply | DC 3.6V | ||
| Display Content | Balance, purchased water, used amount, consumed water, Voltage, version Nos, etc | ||
| Dial Type | Wet dial, dry dial optional | ||
| Pulse Equivalent | 0.1m³ | ||
| Communication | Lora≤ 1KM ( Real communication distance depends on actual working conditions) | ||
| Lorawan≤ 5KM ( Real communication distance depends on actual working conditions) | |||
| Up Flow Sensitivity Grade | U10 | ||
| Down Flow Sensitivity Grade | D5 | ||
| Climatic and Mechanical Environmental Conditions | B | ||
| Static Currency | ＜20uA | ||
| Max reading | 99999℃ | ||
|
Max Permissible Error |
Q1≦Q≦Q2: ±5% Q2≦Q≦Q4: ±2% | ||
Short Codes
| Short Code | Description |
| 00 | Toggle data 01, 06, and 07 |
| 01 | Total water consumption |
| 06 | Total purchase credit |
| 07 | Remaining water credit |
| 10 | Toggle data 14, 15, 16 |
| 14 | Consumed overdraft |
| 15 | Maximum overdraft value |
| 16 | Warning low credit value |
| 30 | Toggle data 31-35 |
| 31-35 | Last 1th to 5th Credit Transfer Amt. in m³ |

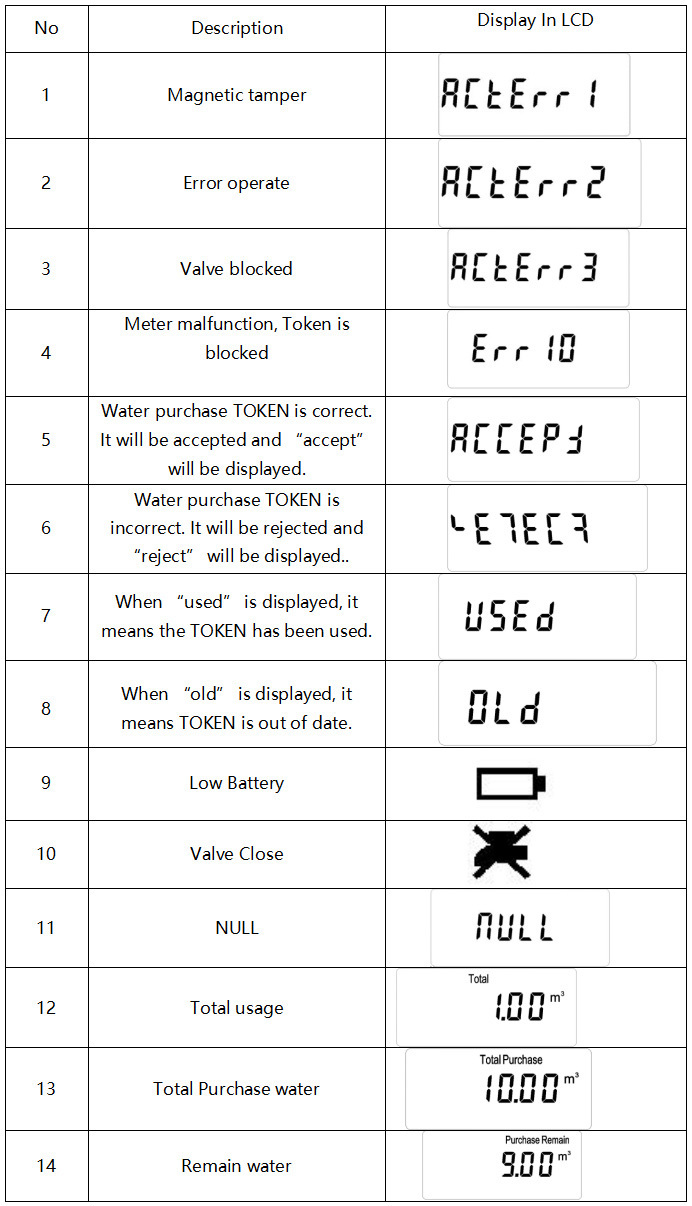

Water Meter LCD Display's Functions

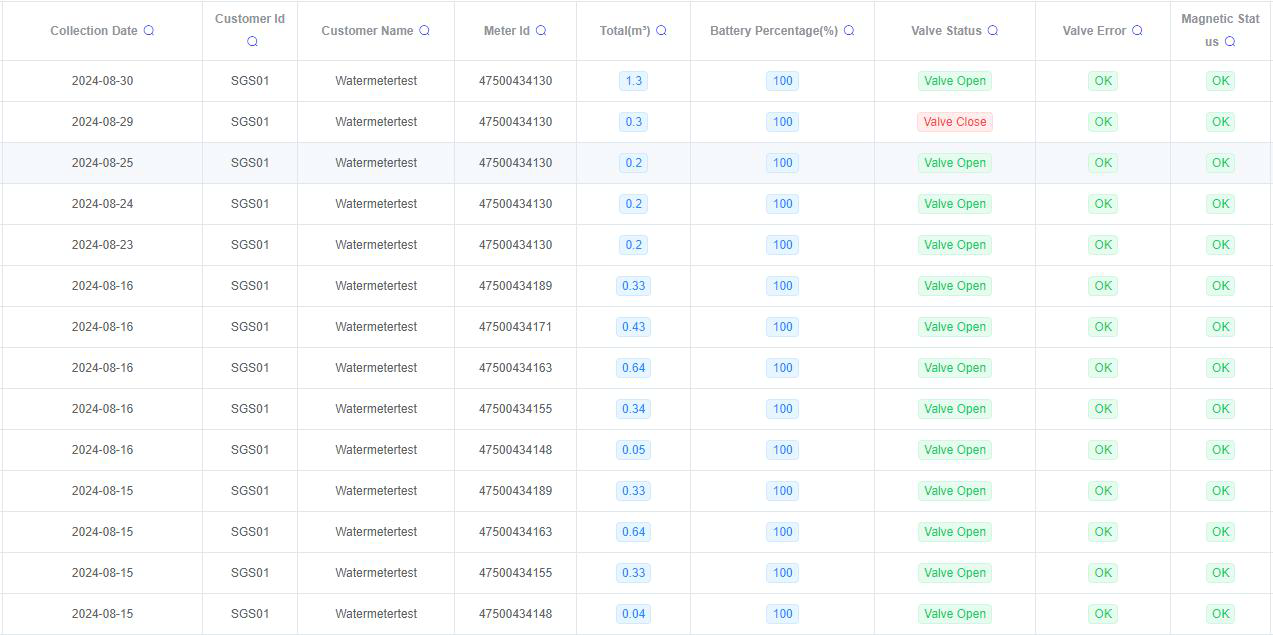

AMI Features

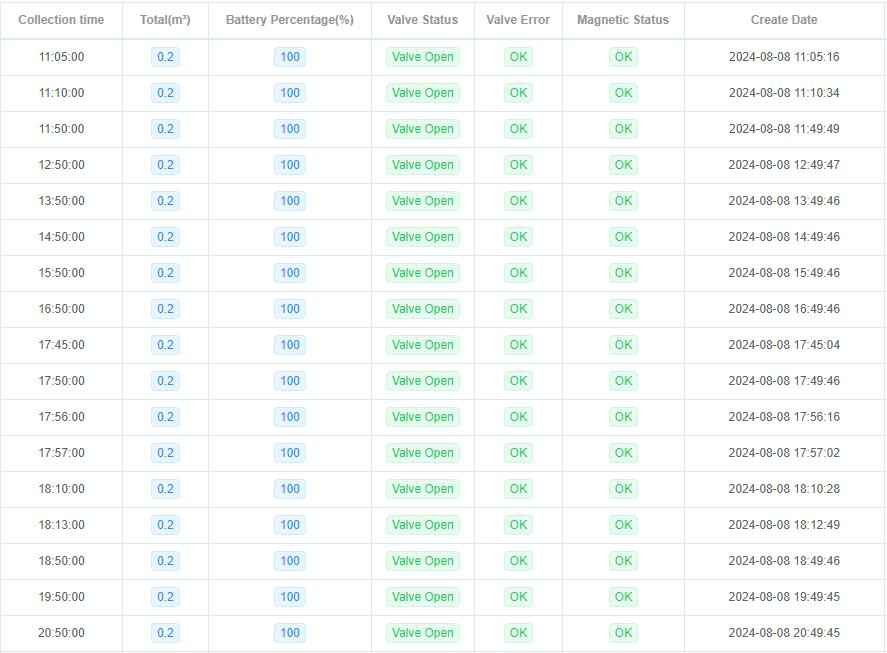

1.Daily Report
2.Hourly Report
CIU Details
|
Customer Interface Unit (CIU) for Meter Recharge & Data Query Technical Specs: |
|
| Material | ABS for Main Case and PET for Nameplate |
| Dimension | 8cm Width * 14cm Length * 3cm Height |
| Weight | 200g |
|
Power Supply |
AC Power with Adapter (5V, >500mA) Dry Battery (4pcs AAA Dry Battery |
| Communication Method | Lora/ Lorawan |
| Communication Distance | Lora ( less 1km) / Lorawan ( less 10km), note that The specific transmission distance depends on the actual test situation. |
| LCD | Dot Matrix LCD with Backlight |
| LED | indication of LoRa RF Wireless Communication Status |
| Buzzer | Beep for indication & Alarm after 10h of continuous use |
| Temperature | 0 ~ 50℃ |
| Humidity | 10% ~ 90% |
